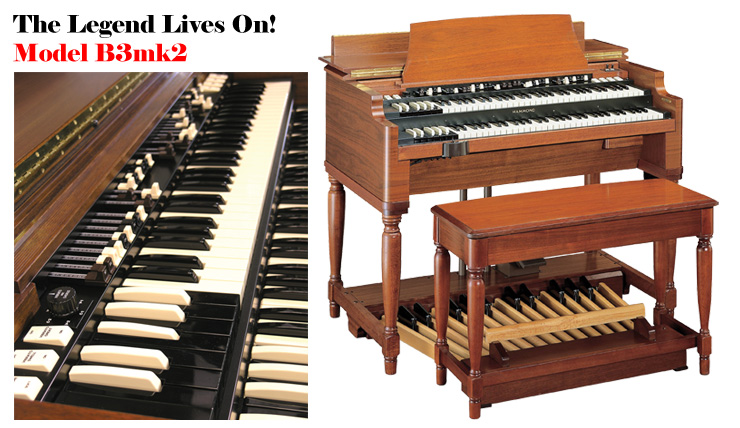

The New B-3mk2 is the latest incarnation of the King Of Instruments. Every facet, every detail, every nuance of the classic B-3 inside
and out has been painstakingly replicated using the most sophisticated digital technology. No matter which branch of the Hammond
family you are from-Gospel, Jazz, Pop, Rock, Blues, Soul or Country; you will find the touch, feel and sound of the NEW B-3mk2 as
familiar as any B-3 you have ever played!.


Keyboard
61-note Keyboard x 2 and a 25-note pedal keyboard

Preset Key
12 keys, Mechanical Latch

Preset Memory
Internal memory, CF card

Keying Method
Direct Analog Keying

Polyphony
Full Polyphony (Upper & Lower)/8 notes Polyphony (Pedal)

Generator for Upper & Lower Manual Key
96 digital tone-wheels (Btype1, Btype2, Mellow)
Level is adjustable wheel by wheel for 96 tone wheels

Generator for Pedal
VASE III (Muted, Normal, Synth 1, Synth2)
Normal timbre is adjustable by drawbars composite system

Swell Drawbars
9 pitches, 2 sets

Great Drawbars
9 pitches, 2 sets

Pedal Drawbars
2 pitches

Vibrato / Chorus
V1, V2, V3, C1, C2, C3, (programmable), Swell On, Great On.

Onboard Digital Leslie
Advanced 2 rotor, digital Leslie

Leslie Switch
Slow, Stop, Fast

Percussion
ON/OFF, Second / Third Harmonic
Slow/Fast Decay, Normal/Soft Volume

Preamp
Vacuum tube x 2(12AU7: Overdrive, 12AX7: Preamp)

Control
Expression Pedal w/Foot Switch
Motor Control (Up/Down Switch
Pedal Sustain, Manual Bass, Normal/Soft Volume

Digital Reverb
Spring and 10 more models, Leslie On Reverb, Reverb Volume

Volume
Overdrive, Reverb, Master Volume

EQ
Bass, Treble, Mid-Range (adjustable center frequency), B-3 type "tone" control

Display
LCD 20 Character x 2 Lines (orange back Light)

External Slot
CF (Compact Flash) Card
Head Phone, Line in L/R, Line out L/R, Pedal out Effect Send/Return

Input/Output
11-pin Leslie Socket x 2 (Main, Echo)
MIDI OUT, MIDI PEDAL IN
Leslie Switch, Main/Echo Switch

Weight (including Pedal & Bench)
Console
293 lbs

Dimensions (Opened)
48 3/4" (W) x 29" (D) x 38 3/8" (H)

Locking Keyboard Cover
Included

Cabinet Finish
Red Walnut

Optional
Main/Echo Switch
